small Concrete Plant
Small Plant Footprint. Uncompromising Concrete Quality.
Capacity:
25-90m³/h
Type:
Stationary or Mobile
Price:
$10,000 – $30,000+
What is a Small concrete plant?
Small concrete plants are compact and easy to move, requiring very little ground space to operate. Unlike large-scale commercial batch plants, these smaller units are engineered specifically to provide on-site mixing for small and medium-sized construction jobs.
small Concrete Plants For Sale
small stationary Concrete Plants

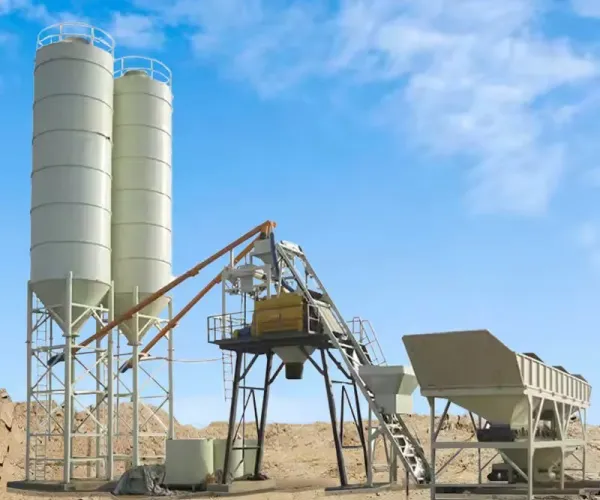

HZS25 Concrete Plant
Capacity:
25m³/h
Mixer Capacity:
750L
Mixer Type:
JS500
Matched Batcher:
PLD800

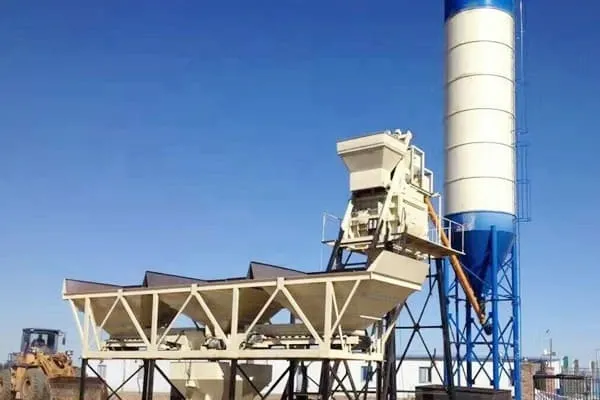

HZS50 Concrete Plant
Capacity:
50m³/h
Mixer Capacity:
1000L
Mixer Type:
JS1000
Matched Batcher:
PLD1600
small Mobile concrete plants
Specifications of small Concrete Plant
| Type | HZS25 | HZS35 | HZS50 | HZS75 |
| Capacity (m³/h) | 25 | 35 | 50 | 75 |
| Mixer Type | JS500 | JS750 | JS1000 | JS1500 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1500 |
| Aggregate Size (Pebble/Macadam) (mm) | 80 | 80 | 80 | 80 |
| Matched Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PL2400 |
| Aggregate Weighing System | 1500Kg ±2% | 2000Kg ±2% | 3000Kg ±2% | 3000Kg ±2% |
| Cement Weighing System | 300Kg ±1% | 450Kg ±1% | 900Kg ±1% | 1500Kg ±1% |
| Fly Ash Weighing System | 500Kg ±1% | 600Kg ±1% | 600Kg ±1% | 600Kg ±1% |
| Water Weighing System | 200Kg ±1% | 300Kg ±1% | 600Kg ±1% | 900Kg ±1% |
| Additive Weighing System | 20Kg ±1% | 30Kg ±1% | 30Kg ±1% | 50Kg ±1% |
| Discharging height | 3.8 m | 3.8 m | 3.8 m | 4.1m |
| Type | YHZS25 | YHZS35/40 | YHZS50/60 | YHZS75/90 |
| Capacity (m³/h) | 25 | 35 | 50 | 75 |
| Concrete Mixer Type | JS500 | JS750 | JS1000 | JS1500 |
| Mixer Discharging Capacity (L) | 500 | 750 | 1000 | 1500 |
| Mixer Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Matched Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Aggregate Weighing System | 1500kg±2% | 2000kg±2% | 3000kg±2% | 3000kg±2% |
| Water Weighing System | 200kg±1% | 300kg±1% | 600kg±1% | 900kg±1% |
| Cement Weighing System | 300kg±1% | 450kg±1% | 900kg±1% | 1500kg±1% |
| Additive Weighing System | 20kg±1% | 30kg±1% | 30kg±1% | 50kg±1% |
| Fly Ash Weighing System | Optional | Optional | Optional | Optional |
price of small concrete plant
A standard small concrete plant price typically ranges from $10,000 to $30,000+ USD (Note: This is a baseline reference range; please contact our team for a precise quotation tailored to your site specifications).
The cost of a small concrete plant varies significantly based on the capacity (25m³/h to 90m³/h) and the complexity of the configuration. Key factors influencing the small concrete plant price include the selection of the mixer, the number of aggregate bins, the type of control system, and auxiliary equipment like cement silos. Generally, compact models like the HZS25 offer a lower entry point for startups and small-scale projects, while higher-capacity models like the HZS90 command a higher investment for growing local commercial needs.
Features of small concrete plant
Rapid Transport & Installation
Low Capital Investment
Ultra-Compact Footprint
Fast Payback Period
High-Level Automation
Flexible Customization
Is Investing in a Small Concrete Plant the Fastest Way to Double Your Project Margins?
Owning your own concrete supply quickly boosts project margins and grows your contracting business fast.
- Low Barrier to Entry: A small batch plant needs far less setup cost than large commercial facilities. Its compact design skips complex permanent foundation work, keeping initial capital low—perfect for startups and mid‑sized contractors.
- Minimal Operating Expenses: Daily running costs stay lean. These energy‑efficient units only need one operator for most tasks. Fewer wear parts simplify maintenance, lower long‑term fees and cut downtime.
- Rapid Payback Period: Producing concrete in‑house removes expensive ready‑mix supplier markups. Flexible capacity fits residential, rural infrastructure and local municipal jobs, raising per‑batch profits and shortening your return cycle.
- Smart, Scalable Optimization: Modular builds let you buy only what you need now, with no wasted investment. You can customize layouts easily, and scale later by adding silos, aggregate bins or automation upgrades as your business expands.
Types of Small Concrete Plant
By Mobility

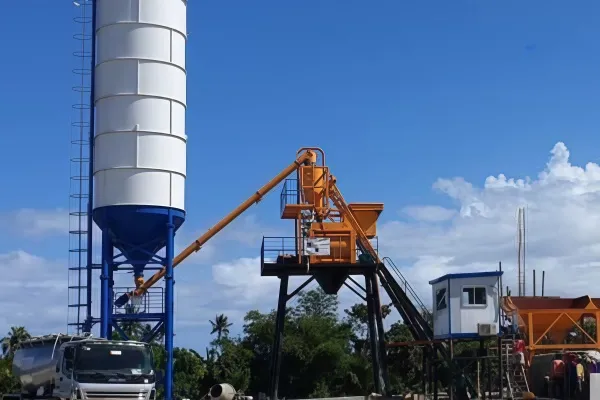

Stationary Small Concrete Plant
Engineered for long-term projects and permanent locations.
- Application: Precast yards, block manufacturing facilities, and long-term construction sites.
- High Cost-Efficiency: Provides highly stable, continuous production at a lower capital cost.
- Durability: Robust framework built for years of heavy-duty, reliable operation.
- Consistent Output: Centralized control for steady, uninterrupted concrete supply.
Get consistent output and maximum ROI. Our stationary plants offer highly stable proportioning and lower maintenance costs when your production site remains in one place.

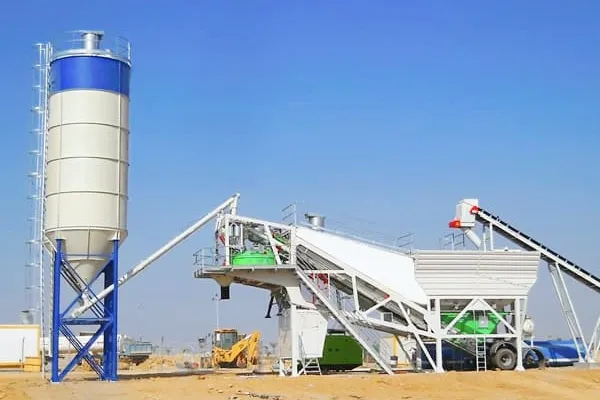

Mobile / Portable Small Concrete Plant
Built on a wheeled chassis for maximum site-to-site agility.
- Application: Temporary job sites, rural infrastructure, and remote road works.
- Fast Relocation: Quick to tear down, transport with a standard trailer, and set up at the next location.
- Compact Footprint: Fits effortlessly into tight workspaces where standard equipment cannot.
- Pre-Wired: Factory-tested wiring drastically cuts down on-site installation time.
Slash transportation costs by mixing concrete directly on your job site. Our mobile / portable designs deploy quickly, keeping your project schedule completely under your control.
By Mixing Process

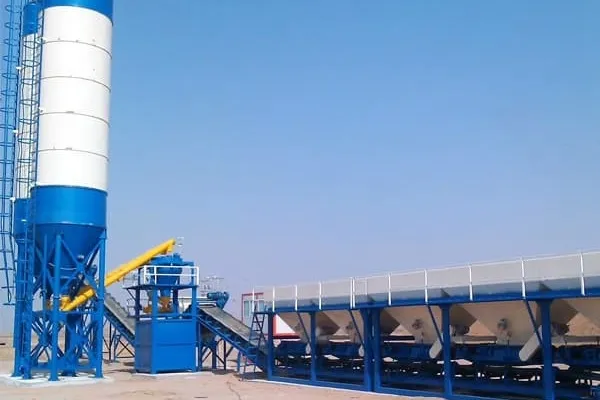

Wet Mix Small Concrete Plant
Features a central twin-shaft mixer for consistent, ready-to-pour concrete.
- Application: On-site construction, structural foundations, and paving.
- Excellent Homogeneity: Fully mixes all aggregates, cement, and water for a superior quality finish.
- Quality Control: Precise water-cement ratio control right at the batch plant.
- Versatility: Capable of handling everything from high-fluidity to low-slump concrete.
Deliver perfectly mixed, high-strength concrete straight into the mixer truck or concrete pump. Wet mix plants guarantee the structural integrity your clients demand.

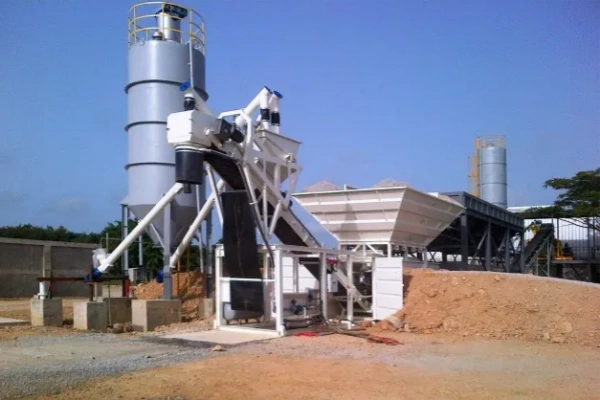

Dry Mix Small Concrete Plant
A highly efficient setup that loads dry materials directly into the transit mixer.
- Application: Long-distance hauling, remote deliveries, and specific commercial operations.
- High Throughput: Faster batching cycles since the actual mixing happens in the truck en route.
- Lower Initial Cost: Eliminates the central mixer, reducing upfront investment and daily maintenance.
- Reduced Wear: Fewer moving parts means lower replacement costs for liners and blades.
Maximize your daily batching speed and expand your delivery radius. A dry batch system is the most cost-effective way to scale a startup ready-mix business.
By Application Scenario

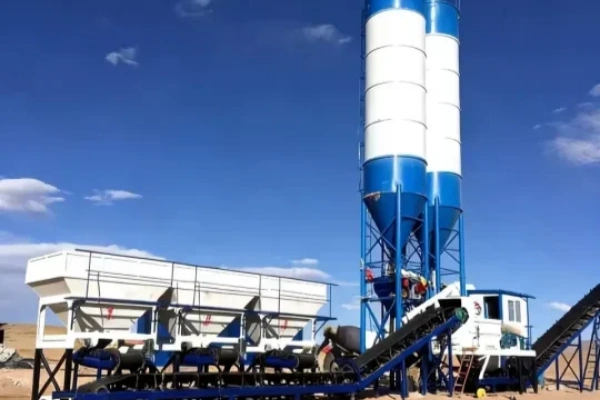

Small RMC Plant
Specifically configured for commercial concrete sales on a local scale.
- Application: Local commercial supply, serving residential builders and mid-sized contractors.
- Flexibility: Easily handles multiple mix designs and custom recipes throughout the day.
- Accurate Weighing: High-precision load cells ensure every single batch meets commercial specs.
- High Uptime: Built with top-tier components to prevent breakdowns during peak delivery hours.
Build a highly profitable, local ready-mix business. With reliable performance and commercial-grade accuracy, you can build a strong reputation among local contractors.

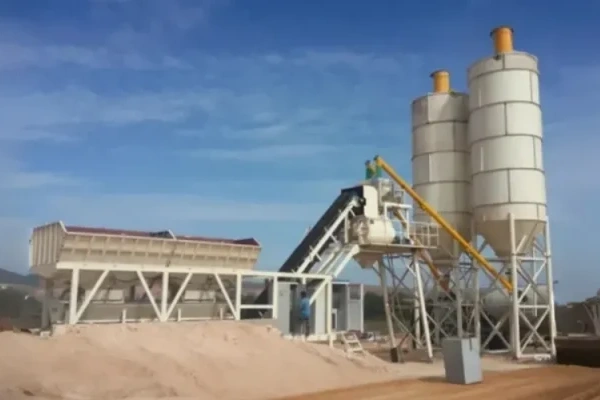

Small Precast Concrete Plant
Tailored for the exacting standards of precast element manufacturing.
- Application: Concrete pipes, hollow core slabs, pavers, blocks, and architectural precast.
- Strict Quality Control: Delivers zero-slump and low-slump concrete with exact consistency.
- Direct Integration: Configured to discharge directly into precast molds, hoppers, or flying buckets.
- Moisture Control: Integrated sensors to strictly manage the water content of the aggregate.
Lower your rejection rates and guarantee component strength. Our precast batching plants provide the absolute precision required to keep your factory output flawless.
By Automation Level
Semi-Automatic Small Concrete Plant
A budget-friendly control system balancing manual operation with automated weighing.
- Application: Startups, low-volume producers, and regions with accessible labor pools.
- Cost-Effective: Lower upfront control system costs while maintaining accurate material batching.
- Easy Maintenance: Simpler electronic components ensure easy troubleshooting and repairs.
- Intuitive Panel: Straightforward button controls require minimal operator training.
A practical and affordable entry point. Step into professional concrete production without the heavy investment of a fully computerized command center.
Fully Automatic Small Concrete Plant
Advanced PLC control systems for completely hands-off batching cycles.
- Application: High-efficiency commercial operations and strict quality-control projects.
- High Precision: Automated moisture correction and dynamic weighing for flawless batches.
- Data Tracking: Software logs every batch, tracks material consumption, and generates billing reports.
- Labor Reduction: One operator manages the entire process from a single computer screen.
Maximize your yield and completely eliminate human error. State-of-the-art automation ensures every cubic yard is identical to the last.
Ideal Applications & Your Best Fit Projects
Whether you are tackling temporary jobs, expanding into rural markets, or setting up a local precast yard, our small concrete batch plants deliver a flexible, economical, and highly efficient production solution.

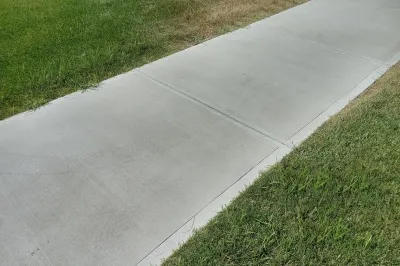

rural roads
paving bricks
residential projects
Ready-Mix Operations
Ideal Application Scenarios:
- Rural & Town Infrastructure: Perfect for rural roads, residential builds, and utility pipeline upgrades.
- Remote & Temporary Sites: Ideal for off-grid roadwork, mining camps, and emergency repairs lacking stable infrastructure.
- Small Precast Yards: Engineered for manufacturing curbs, paving bricks, and small precast blocks.
- Startup Ready-Mix Operations: Supply local, scattered concrete orders with flexible, small-volume batching.
- Light Construction: Suited for small factory builds, municipal hardscaping, and residential projects.
Who Should Be Thinking About a Small Concrete Plant?
- Small construction contractors and ambitious startup firms.
- Rural construction crews and independent builders.
- Local precast manufacturers and emerging ready-mix operators.
- Overseas project managers and local engineering service providers.
Explore Our small Concrete Plant Projects
Our small concrete batching plants deliver highly reliable, flexible concrete production across diverse global environments and challenging project scenarios.

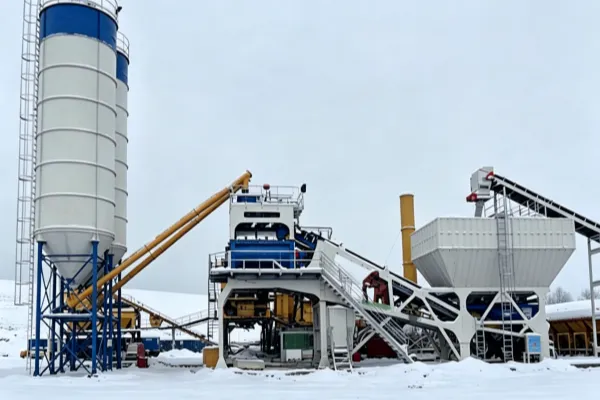

Cold-Climate Infrastructure in Russia
Facing sub-zero temperatures in the Russian Far East, a rural road contractor required an independent production solution. We supplied a customized YHZS35 mobile batch plant. Engineered for cold-weather operation, this portable unit enabled rapid site-to-site relocation and highly stable output. By eliminating reliance on local infrastructure, the crew reduced weather-related downtime by over 35%, keeping their remote paving schedule firmly on track.
Remote Highway Construction in Tanzania
A rural highway project with heavily scattered construction points made traditional ready-mix deliveries financially unviable. The contractor deployed our compact YHZS25 portable concrete plant, allowing them to cycle production directly alongside the advancing roadwork. Mixing on-site slashed their concrete transportation logistics costs by nearly 40% and completely eliminated transit delays, enabling the crew to finish the multi-site paving project a full 20% ahead of schedule.
Municipal Precast Manufacturing in Turkey
An Istanbul precast manufacturer needed a steady, high-quality concrete supply to fulfill municipal curb and paving block contracts. They installed our HZS50 small concrete batching plant to guarantee strict, high-precision proportioning. The upgraded PLC automation delivered exact water-to-cement ratios, improving the structural integrity of their precast elements. This optimized setup ultimately reduced material waste by 15% and boosted their overall daily production efficiency by roughly 30%.
Components of a small concrete plant
Our small batch concrete plants come with a complete, field-proven set of core components built for consistent performance and low maintenance.
Mixing System
Equipped with a compulsory mixing main shaft, it delivers uniform mixing and high efficiency, compatible with all standard concrete mixes.
Weighing & Batching System
Fitted with high-precision weighing sensors for accurate measurement of aggregates, cement, admixtures and other raw materials.
Powder Storage & Conveying System
Bolted cement silos (easy transport) + screw conveyors for cement/fly ash handling, with integrated dust removal.
Conveying System
Includes belt conveyors and screw conveyors to move materials smoothly and reliably, keeping production continuous.
Storage System
Sealed aggregate bins and cement silos prevent dust and moisture, preserving material quality batch after batch.
Control System
PLC-based automatic control system enables intelligent operation and real-time monitoring of the entire production process.
How Does a Small Concrete Plant Work?
Our small batching plant follows a closed-loop workflow of precise batching, high-efficiency mixing and stable discharging to deliver consistent, high-quality concrete nonstop.
- Material Storage: Aggregates, cement and admixtures are stored separately in sealed silos and bins to keep materials dry and dust-free.
- Accurate Batching: The weighing system measures every raw material strictly by preset formulas, keeping dosage errors fully controlled.
- Intensive Mixing: All measured materials go into the compulsory mixer for thorough blending, creating standard qualified finished concrete.
- Finished Discharging: Mixed concrete flows out through the discharge hopper directly into trucks, ready for delivery to job sites.
- Continuous Operation: The whole system runs on automatic cycles to maintain steady output and support long-term batch production.
How to Choose the Right Small Concrete Plant for Your Project
Selecting the right equipment comes down to matching mobility with your project timeline, and theoretical capacity with your daily volume needs.
As a general rule: choose a mobile or portable plant for short-term, temporary jobs, and a stationary plant for long-term, fixed-location production.
Here is a quick sizing guide to help you match your project scope with the correct capacity:

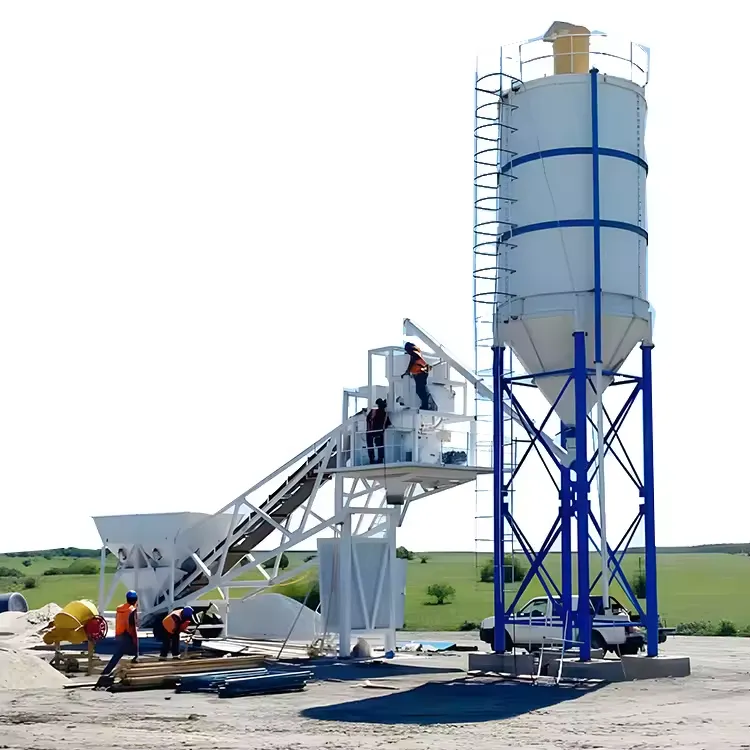

- 25m³/h mini batching plant: Built for micro and temporary jobs like rural residential builds, pathway paving, landscaping, and emergency repairs that require low-volume, on-demand concrete. A mobile or portable setup is highly recommended for independent crews and startups, allowing for fast relocation without the cost of complex foundation work.

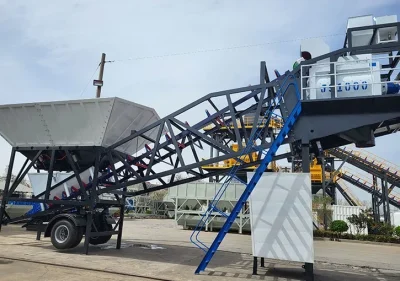

- 35m³/h small concrete batch plant: The sweet spot for small-scale routine construction, including utility pipeline upgrades, small factory floors, and manufacturing light precast elements like curbs and paving bricks. It balances flexibility and stability. Depending on your project timeline, you can choose a mobile unit for multi-site agility or a stationary setup for centralized operations.
- 50m³/h small concrete batching plant: Engineered for medium-small operations such as local precast yards, small municipal sidewalk and bike lane projects, and local commercial supply handling scattered local orders. A stationary configuration is strongly advised here to guarantee highly stable, continuous production over the long term.

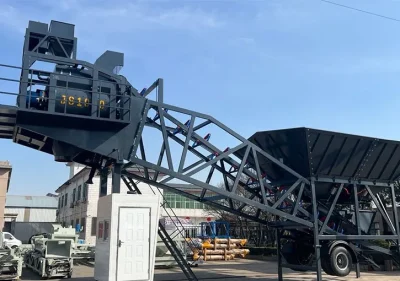

- hzs60 small type concrete batching plant: A powerful entry point for medium commercial applications. This capacity easily supports small ready-mix startups with consistent daily orders, batch precast production, and township main road upgrades. Pairing this unit with a fully automatic control system will maximize your daily efficiency and lower your labor overhead.
- 90m³/h small batching plant: Pushing the upper limit of the compact range, this is built for higher commercial demands like regional ready-mix supply, large-scale precast manufacturing (hollow core slabs, beams, columns), and county-level infrastructure. A stationary setup combined with a dual-power solution ensures high-capacity, uninterrupted output even under demanding site conditions.
Easy Installation: Save Your Time & Budget
This mini concrete batching plant is built with your on-site needs in mind—cutting setup labor, extra equipment costs and waiting time to get your project running faster.
- Skip Complex Foundation Work with Modular Build: Pre-built modular parts skip complicated foundation work, making on-site assembly way easier for your team.
- Cut Extra Costs with Crane-Free Setup: Compact structure lets your crew finish installation manually. No expensive large hoisting gear needed, slashing your extra job costs.
- Launch Production Fast to Shorten Project Lead Time: Full installation and tuning wrap up in about a week. You can put the plant into production fast and shorten your whole project prep time.
- Relocate Easily for Multi-Site Construction Jobs: Fast disassembly and re-assembly support quick site transfers, perfect if you work on multiple projects at different locations.
Advantages of Our small concrete plant
Engineered specifically to solve the production bottlenecks of small-to-medium contractors, our small concrete mixing plants deliver a highly cost-effective, precision-batching solution without the heavy overhead.
- Ultra-Compact Footprint: Designed to fit into the tightest job sites where standard commercial plants simply cannot go. By eliminating the need for massive, permanent poured foundations, you drastically cut your upfront site preparation costs.
- Effortless Relocation: Built with modular frames or wheeled trailer chassis, these systems are meant to move. Easily tear down, transport, and set up at your next location, allowing you to supply multiple scattered projects with a single piece of equipment.
- Rapid Setup & Commissioning: Get your crew pouring in days, not weeks. Pre-wired and pre-assembled modular components require minimal crane support and slash your project prep time, allowing you to start generating revenue almost immediately.
- Unbeatable ROI: A much lower initial capital investment combined with single-operator efficiency keeps your daily overhead strictly in check. Higher margins on every cubic yard you produce guarantee a rapid payback period.
- Commercial-Grade Reliability: “Small” does not mean weak. Equipped with heavy-duty twin-shaft or pan mixers, these plants deliver the continuous, highly stable output required to keep your pouring crews busy all day without breaking down.
- Flawless Batching Accuracy: High-precision load cells and automated control systems ensure your exact mix design is perfectly executed every single time. Consistent, high-strength concrete guarantees your structural work passes strict engineering inspections.
Fully Customizable: Tailoring Your Small Concrete Plant to Your Job Site
We know that no two job sites are the same. That is why we offer end-to-end customization, engineering your mini concrete plant to meet your exact project demands, environmental challenges, and local regulations.
1. Flexible Power Solutions
- Electric Drive: The most cost-effective choice for urban job sites and permanent fixed facilities with a stable power grid. Delivers eco-friendly, low-noise operation and keeps your daily energy overhead to an absolute minimum.
- Diesel Drive: Built exclusively for off-grid, remote, or temporary sites. This independent power solution allows you to deploy and batch concrete anywhere, completely free from local infrastructure limits.
- Dual-Power System: The ultimate production safeguard. Seamlessly switch between electric and diesel operation to navigate unstable local power grids and guarantee zero production downtime.
2. Standard vs. Optional Configurations
- Standard Core Components: Every plant comes fully equipped with commercial-grade essentials: a heavy-duty compulsory mixer, automatic aggregate batcher, intuitive PLC control system, material conveyors, and a standard discharge hopper.
- Optional Upgrades: Only pay for what you need. Scale your operation by adding extra aggregate bins, high-capacity cement silos, environmental dust collection systems, concrete heating/chilling systems for extreme weather, remote monitoring software, and advanced scale calibration tools.
3. Extreme Environment Modifications
Whether you are pouring foundations in the freezing sub-zero temperatures of a northern winter, the intense heat of a tropical zone, or a high-altitude mountainous region, we custom-engineer your plant. We integrate winterized thermal enclosures, heavy-duty cooling systems, and specialized motors to ensure peak performance in any climate.
4. International Export Compliance
We make overseas procurement seamless. We tailor your equipment to meet strict local regulations, including CE/ISO/BV/SGS certifications and exact regional voltage specifications. Our designs are optimized for standard shipping containers to lower your ocean freight costs, providing a true one-stop export service straight to your local port.
Common Misconceptions About Small Concrete Plants
The Reality:
Small concrete mixer plants thrive in commercial scenarios. They are the perfect, low-risk entry point for startup ready-mix operators. Their agile production allows you to efficiently supply scattered, local, and mid-sized commercial orders, building a highly profitable local business without the massive overhead of a high-capacity mega-plant.
The Reality:
Footprint has absolutely nothing to do with batching accuracy. Our small plants utilize the exact same commercial-grade load cells and closed-loop PLC automation systems as massive industrial facilities. You get strict water-to-cement ratios and perfectly consistent concrete that will pass stringent engineering inspections every single time.
The Reality:
Portability does not mean compromising on structural integrity. Our mobile mini batch mix plants are engineered with heavy-duty, modular steel frameworks. They are purpose-built to absorb the intense vibrations of continuous mixing and withstand the daily abuse of rugged, off-road construction sites.
The Reality:
The exact opposite is true. A streamlined, modular structure inherently means fewer moving parts and far less mechanical complexity. With easy-to-access service points and fewer heavy wear items (like massive conveyor belts), routine maintenance is fast, straightforward, and highly affordable. Your long-term operating costs remain strictly under your control.
Why choose us?
For over two decades, we have focused on engineering the best mini concrete batch mix plant solutions. We provide complete, export-ready construction equipment that helps our clients tackle their most difficult projects successfully.
Global Leadership & Export Compliance
As a premier China mini concrete mixing plant manufacturer, we have delivered 3,800+ units across 110 countries, including key markets like the UK and India. Unlike standard suppliers, our equipment is built strictly for global export. We hold complete CE, ISO, SGS, and BV international certifications. This completely resolves issues with incomplete qualifications and difficult customs clearance, ensuring 100% verified quality and compliance when you buy small concrete plant systems from us.
Innovation & Factory Precision
As top-tier small concrete plant manufacturers, quality is built-in at our intelligent factory through robotic welding and CNC machining. To guarantee field reliability, whether for a single custom unit or a wholesale small concrete plant order, every system undergoes a strict full-load trial run before dispatch. This keeps our post-sales failure rate at just 1/3 of the industry average.
Customized Solutions & Global Support
We reject “one-size-fits-all” designs, offering tailored configurations for our most popular small concrete plant models. Trusted by 21 of the Global Top 50 contractors, we act as more than just a small concrete plant seller. We back your project with 16 overseas subsidiaries and 120+ local dealers, ensuring rapid response times, seamless installation, and lifecycle technical support wherever your site is located.
Full-Lifecycle Service: Engineering Your Success from Planning to Production
A precast concrete plant is a major asset. We provide end-to-end support to ensure peak production stability and rapid cost recovery.
Pre-Sales: Strategic Consulting & Site Planning
We provide tailored technical roadmaps rather than simple quotes. By analyzing your materials and timeline, we recommend the ideal plant configuration. To optimize limited site space and traffic flow, our engineers provide detailed Site Planning Drawings and Foundation Layouts. Furthermore, our comprehensive ROI Analysis projects costs and profitability, ensuring confidence in your investment.
In-Sales: Professional Installation & Team Empowerment
We ensure rapid deployment through remote or on-site Installation Guidance following strict mechanical standards. After assembly, rigorous System Commissioning fine-tunes weighing and mixing accuracy to guarantee concrete quality. Concurrently, we deliver comprehensive Operator Training on operation, safety, and troubleshooting, empowering your staff to manage the plant independently.
After-Sales: Operational Security & 24/7 Support
We safeguard your productivity against downtime. Our 24/7 Technical Support ensures experts are always available to resolve issues and minimize disruptions. We provide proactive Maintenance Schemes to extend equipment lifespan, backed by a rapid supply chain for essential wear parts, keeping your plant running at full capacity.
Global Logistics & Delivery Standards
Engineered for export, our concrete batch plant utilize a modular containerized design that significantly reduces sea freight costs and simplifies the unloading process at your site.
Order
Production
Shipment
Discover More Products
Your project has unique demands. Our solutions are engineered to meet them.
Provide our senior engineering team with your project details—such as required output capacity, site conditions, and specific configuration needs. We will promptly deliver a comprehensive proposal, complete with a tailored equipment list and a transparent quote designed to maximize your return on investment.
Let’s build your success together.
Other TYPES You May Need
Why Our Concrete Plants Stand Out?
Modular Standard Plants
Region-Specific Customization
One-Stop Ancillary Equipment
We are professional concrete plant factory with full independent manufacturing capabilities. We own and manage the entire production line, from steel plate pretreatment to the final surface coating, which eliminates all intermediate links. Because we are a concrete plant manufacturer, this allowing us to guarantee premium material quality, optimize production schedules, and pass on all cost savings directly to customers who buy our wholesale ready mix concrete plant equipment, thus ensuring you acquire superior-grade equipment at a highly competitive investment cost.
